三通球阀分T型三通球阀和L型三通球阀。T型能使三条正交的管道相互联通和切断第三条通道，起分流、合流作用。L三通球阀型只能连接相互正交的两条管道，不能同时保持第三条管道的相互连通，只起分配作用。
Three way ball valve is divided into T type and L type three way valve three way valve. T type channels to make the three orthogonal interconnected and cut off the third channel, has split, merge function. Two pipeline L three ball valve type can only be connected mutually orthogonal, communicated with each other can not keep the third pipelines at the same time, only as a distribution function.
三通球阀特点
Three way ball valve features
1、三通球阀在结构上采用一体化结构，4面阀座的密封型式，法兰联接少，可靠性高，设计实现了轻量化。
1, three ball valve in the structure of the integrated structure, 4 seat sealing surface type, flange connection, high reliability, design and implementation of a lightweight.
2、三通球阀分T型和L型，使用寿命长，流通能力大，阻力小。
2, three ball valves of T type and L type, long service life, large flow capacity, small resistance.
3、三通球阀按作用式分单作用和双作用两种型式，单作用式的特点是一旦动力源发生故障时，球阀将处于控制系统要求的状态。
The role of single and dual role of two types 3, three ball valve according to the role type, single action feature is that once the power source failure, the valve will be in the state of the control system requirements.

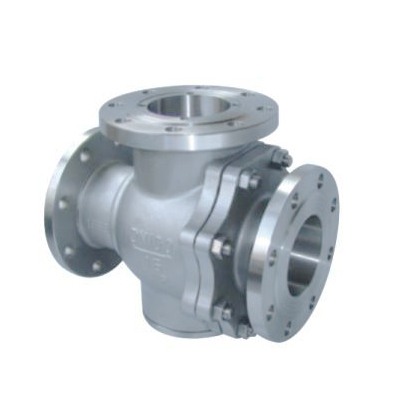

Q44F/Q45F-16~64C/P/R国标法兰三通球阀的工作方式
Q44F/Q45F-16~64C/P/R three standard flange ball valve works
L型流道的三通4面阀座球阀，采用2面阀座，受力平衡，保证闭止通道上可靠密封。主要用于流路的换向。
L channels three through 4 face of the valve seat valve, the 2 seat, force balance, to ensure reliable sealing closure check channel. Mainly used for flow path reversal.
T型流道的三通4面阀座球阀，采用4面阀座，受力平衡，保证闭止通道上可靠密封。主要用于分流、混流、换向以及三通道的完全开放。
T channels three through 4 face of the valve seat valve, the 4 seat, force balance, to ensure reliable sealing closure check channel. Mainly used for completely open shunt, Francis, reversing and three channel.
Q44F/Q45F-16~64C/P/R国标法兰三通球阀 优点
Q44F/Q45F-16~64C/P/R standard flange ball valve has the advantages of three
1． 流体阻力小，其阻力系数与同长度的管段相等。
1 fluid resistance small, the drag coefficient with the same length of pipe.
2． 结构简单、体积小、重量轻。
2 has the advantages of simple structure, small volume, light weight.
3． 紧密可靠，目前球阀的密封面材料广泛使用塑料、密封性好，在真空系统中也已广泛使用。
3 closely reliable, current valve sealing surface material widely used plastic, good sealing performance, in the vacuum system has also been widely used.
4． 操作方便，开闭迅速，从全开到全关只要旋转90°，便于远距离的控制。
The 4 operation is convenient, quick open and close, from fully open to fully closed as long as the rotation 90 °, facilitate remote control.
5． 维修方便，球阀结构简单，密封圈一般都是活动的，拆卸更换都比较方便。
5 ball valve has the advantages of simple structure, convenient repair, seals are generally activities, the removal of the replacement is more convenient.
6． 在全开或全闭时，球体和阀座的密封面与介质隔离，介质通过时，不会引起阀门密封面的侵蚀。
6 in the fully open or fully closed, the ball and seat sealing surface and the dielectric isolation, the medium through, will not cause erosion of the valve sealing surface.
7．适用范围广，通径从小到几毫米，大到几米，从高真空至高压力都可应用。
The 7 is suitable for a wide range, from small diameter to a few millimeters, a few meters from the high vacuum, high pressure can be applied.
高平台球阀按其通道位置可分为直通式，三通式和直角式。后两种球阀用于分配介质与改变介质的流向。
The Gaoping billiard ball valve position according to their channels can be divided into straight through, three links and right angle type. After two kinds of ball valves for distribution of media and change the flow of media.
Q44F/Q45F-16~64C/P/R国标法兰三通球阀 安装维护注意事项
Q44F/Q45F-16~64C/P/R GB three flanged ball valve installation and maintenance matters needing attention
1.要留有阀柄旋转的位置。
1 to leave the position of valve handle rotation.
2.不能用作节流。
2 can not be used for throttling.
3带传动机构的球阀应直立安装。
3 belt drive mechanism of the valve should be installed upright.
Q44F/Q45F-16~64C/P/R国标法兰三通球阀的工作原理是靠旋转阀恋来使阀门畅通或闭塞。球阀开关轻便，体积小，可以做成很大口径，密封可靠，结构简单，维修方便，密封面与球面常在闭合状态，不易被介质冲蚀，在各行业得到广泛的应用。
The working principle of Q44F/Q45F-16~64C/P/R standard flange three way ball valve is a straight through rotary valve to the valve flow or occlusion. Valve switch light, small size, can be made into a large caliber, reliable sealing, simple structure, convenient repair, sealing surface and spherical often in the closed state, the media can not easily be eroded, widely used in various industries.
三通球阀在管路中主要用来做切断、分配和改变介质的流动方向。球阀是近年来被广泛采用的一种新型阀门。
The flow direction of three way ball valve in the pipeline is mainly used to make cutting, changes in media distribution. Ball valve is a new valve widely used in recent years.
三通球阀是一种比较新型的球阀类别，它有着自身结构所独有的一些优越性，如开关无摩擦，密封不易磨损，启闭力矩小。这样可减小所配执行器的规格。配以多回转电动执行机构，可实现对介质的调节和严密切断。广泛适用于石油、化工、城市给排水等要求严格切断的工况。
Three way ball valve is a new type of ball valve type, it has some advantages of the unique structure of its own, such as the switch without friction, seal is not easy to wear, hoist torque small. This reduces the actuator with the specifications. With multi turn electric actuator, which can be realized on the media regulation and tight shutoff. Widely used in petroleum, chemical industry, city water supply and drainage are strict cut-off conditions.
它的工作原理如下
It works as follows
A、开启过程
A, open process
1在关闭位置，球体受阀杆的机械施压作用，紧压在阀座上。
1 in the closed position, the valve ball mechanical pressure action, pressed on the seat.
2当逆时针转动手轮时，阀杆则反向运动，其底部角形平面使球体脱开阀座。
2 when the handwheel counterclockwise, the stem is the reverse movement, the bottom of the angular plane to disengage the ball seat.
3阀杆继续提升，并与阀杆螺旋槽内的导销相互作用，使球体开始无摩擦地旋转。
3 stem continues to improve, and with the spiral groove of the guide pins stem interactions, the ball began to spin without friction.
4直至到全开位置，阀杆提升到极限位置，球体旋转到全开位置。
4 up to the fully open position, the valve stem to the limit position, rotate the sphere to the fully open position.
B、关闭过程
B, the closing process
1关闭时，顺时针旋转手轮，阀杆开始下降并使球体离开阀座开始旋转。
1 off, rotate the hand wheel clockwise, the stem began to decline and to leave the seat to rotate a sphere.
2继续旋转手轮，阀杆受到嵌于其上螺旋槽内的导销的作用，使阀杆和球体同时旋转90°。
2 continue rotating the handwheel, the stem is embedded in the spiral groove of the guide pin, the stem and ball rotating 90 °.
3快要关闭时，球体已在与阀座无接触的情况下旋转了90°。
The 3 is closed, the sphere has been no contact with the valve seat under the condition of 90 DEG rotation.
4手轮转动的最后几圈，阀杆底部的角形平面机械地楔向压迫球体，使其紧密地压在阀座上，达到完全密封。
4 hand rotation of the final laps, the stem at the bottom of the angular plane mechanical wedge pressure sphere, so closely pressed on the seat, to be completely sealed.
Q44F/Q45F-16~64C/P/R国标法兰三通球阀 的结构特点
Structural features of Q44F/Q45F-16~64C/P/R standard flange three way ball valve
1、启闭无摩擦。这一功能完全解决了传统阀门因密封面之间相互摩擦而影响密封的问题。
1, open and close without friction. This function completely solve the traditional valve sealing surface due to friction between the sealing problems.
2、上装式结构。对装在管道上的阀门可直接在线检查与维修，能有效减少装置停车，降低成本。
2, jacket type structure. Can be directly online inspection and repair of the valve installed in the pipe, can effectively reduce the plant parking, reduce costs.
3、单阀座设计。消除了阀门中腔介质因异常升压而影响使用安全的问题。
3, single seat design. Remove the valve in the cavity medium affected by abnormal use boost security problems.
4、低扭矩设计。特殊结构设计的阀杆，只需配一个小手把阀门就能轻松启闭。
4, low torque design. Special structural design of the stem, just with a little hand to easily open and close the valve.
5、楔形密封结构。阀门是靠阀杆提供的机械力，将球楔压到阀座上而密封，使阀门的密封性不受管线压差变化的影响，在各种工况下密封性能都有可靠保证。
5, wedge-shaped seal structure. The valve stem is provided by the mechanical force, the ball seat on the wedge pressure to seal, the valve seal is not affected by the impact of changes in pipeline pressure, the sealing performance under various conditions have a reliable guarantee.
6、密封面的自清洁结构。当球体倾离阀座时，管线中的流体沿球体密封面成360°均匀通过，不仅消除了高速流体对阀座局部的冲刷，也冲走了密封面上的聚积物，达到自清洁的目的。
6, the sealing surface of the self-cleaning structure. When the ball roll away from the valve seat, fluid in the pipeline along the sealing surface of the sphere into 360 DEG through, not only eliminates the high-speed fluid to seat local scour, also washed away the accumulation on the seal face, to achieve self cleaning purposes.
