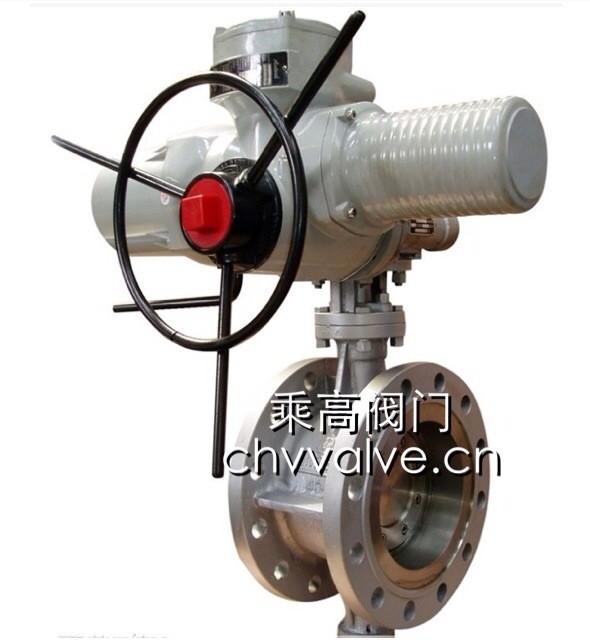

Intelligent electric valve is composed of intelligent electric actuator and valve body composition by direct casting, precision of U shaped elastic sealing ring and the three eccentric multi-level metal seal structure, widely used in medium temperature ≤ 425 ℃ metallurgy, electric power, petrochemical, and water supply and drainage and municipal construction and other industrial pipelines, intelligent electric butterfly valve flow capacity, the normal temperature, clean medium, can choose the valve plate with soft seal (rubber ring, PTFE ring) to reduce leakage (up to zero leakage), high temperature and high pressure conditions can choose three eccentric hard seal valve for regulating the flow of fluid and set off with. Intelligent electric valve seat and disc sealing surface and are made of stainless steel with different hardness, good corrosion resistance, long service life, intelligent electric valve has two-way sealing function, the products comply with the national standard GB/T13927-92 valve pressure test.

■ 主要技术参数

■ main technical parameters

● 阀体

● valve

阀体形式 直通铸造阀

Direct casting valve body form

公称通径 DN50～600mm

Nominal diameter of DN50 ~ 600mm

公称压力 PN1.0、1.6、2.5MPa

Nominal pressure PN1.0, 1.6, 2.5MPa

法兰标准 JIS B220、JB/T79、ANSI B16.5-1981、GB/T9113、HG20594-97、HG20618-97等

Flange standard JIS B220, JB/T79, ANSI B16.5-1981, GB/T9113, HG20594-97, HG20618-97 etc.

连接形式 法兰(FF RF RTJ)、焊接(SW BW)、对夹式

Flange connection form (FF RF RTJ), welding (SW BW), on the clip

阀盖形式 一体式

The valve cover form an integral

压盖型式 压板压紧式

Cover type pressure type

密封填料 V型聚四氟乙烯填料、柔性石墨填料

Packing type V PTFE packing, flexible graphite packing

● 阀内件

● trim

阀板形式 蝶形

The butterfly valve plate form

流量特性 近似等百分比

The flow characteristics of approximate equal percentage

● 执行机构

● actuator

执行器型号 Rotork、Auma、Siemens

Actuator models Rotork, Auma, Siemens

主要技术参数 电源电压：220V/50Hz、380V/50Hz、输入信号：4-20mA或1-5V·DC、输出信号：4-20mA·DC

The main technical parameters of power supply voltage: 220V/50Hz, 380V/50Hz, input signal: 4-20mA or 1-5V · DC, 4-20mA · DC output signal:

防护等级：相当IP67、隔爆标志：ExdⅡBT4、手操功能：手柄、可带现场总线

Protection grade: IP67, explosion-proof symbol: Exd Ⅱ BT4, manual operation function: handle, with field bus

环境温度：-25～+70℃、环境湿度：≤95%

Environment temperature: -25 ~ +70 ℃, relative humidity: ≤ 95%

注：如需详细执行器参数，请进入电动执行器页面进行查阅。

Note: for detailed actuator parameters, please refer to page into the electric actuator.

■ 主要零件材料

■ material of main parts

1 底座 HT200、WCB、CF3、CF3M、CF8、CF8M

The 1 base HT200, WCB, CF3, CF3M, CF8, CF8M

2 下轴套 铜合金、304、316

2, 304, 316 copper alloy bushing

3 阀体 HT200、WCB、CF3、CF3M、CF8、CF8M

3 body HT200, WCB, CF3, CF3M, CF8, CF8M

4 密封圈 NBR丁晴橡胶、PTFE、PPL、304、316

The sealing ring 4 NBR NBR rubber, PTFE, PPL, 304, 316

5 压板、蝶板 HT200、WCB、CF3、CF3M、CF8、CF8M

The 5 plate, the butterfly plate HT200, WCB, CF3, CF3M, CF8, CF8M

6 固定销 25、35、45

6 fixed pins 25, 35, 45

7、8 上、下阀轴 2Cr13、304、316、316L

7, 8, 304, 316, valve shaft 2Cr13, 316L

9 上轴套 铜合金、304、316

9, 304, 316 copper alloy bushing

10 填料 聚四氟乙烯/柔性石墨

10 packing PTFE / flexible graphite

11、12 填料压盖组件 HT200、WCB、CF3、CF3M、CF8、CF8M

11, the packing gland 12 component HT200, WCB, CF3, CF3M, CF8, CF8M

■ 主要性能指标

■ main performance index

公称通径 DN(mm) 50 65 80 100 125 150 200 250 300 350 400 450 500 600

Nominal diameter of DN (mm) 506580100125150200 250300350400450500 600

额定流量系数KV 110 180 232 368 656 735 1240 2025 2712 3875 5038 6900 8500 12200

The rated flow coefficient KV 110  180   232  368  656   735  1240   2025   2712   3875   5038   6900  8500  12200

允许压差(MPa) ≤ 公称压力

Allowable voltage difference (MPa) ≤ nominal pressure

动作范围 0～90°

The action range of 0 ~ 90 °

泄露量Q 按GB/T4213-92，为Kv值的10-4

Leakage of Q according to the GB/T4213-92, Kv ＆#118alue 10-4

基本误差 ±1%

The basic error of ± 1%

回差 ±1%

Return error ± 1%

死区 0.1～1%

Dead time 0.1 ~ 1%

可调范围 50:1

Adjustable range 50:1
